Issue with Pyradmon and RH electronics IDE kit
4 years 9 months ago #4992
by docsquee
Replied by docsquee on topic Issue with Pyradmon and RH electronics IDE kit

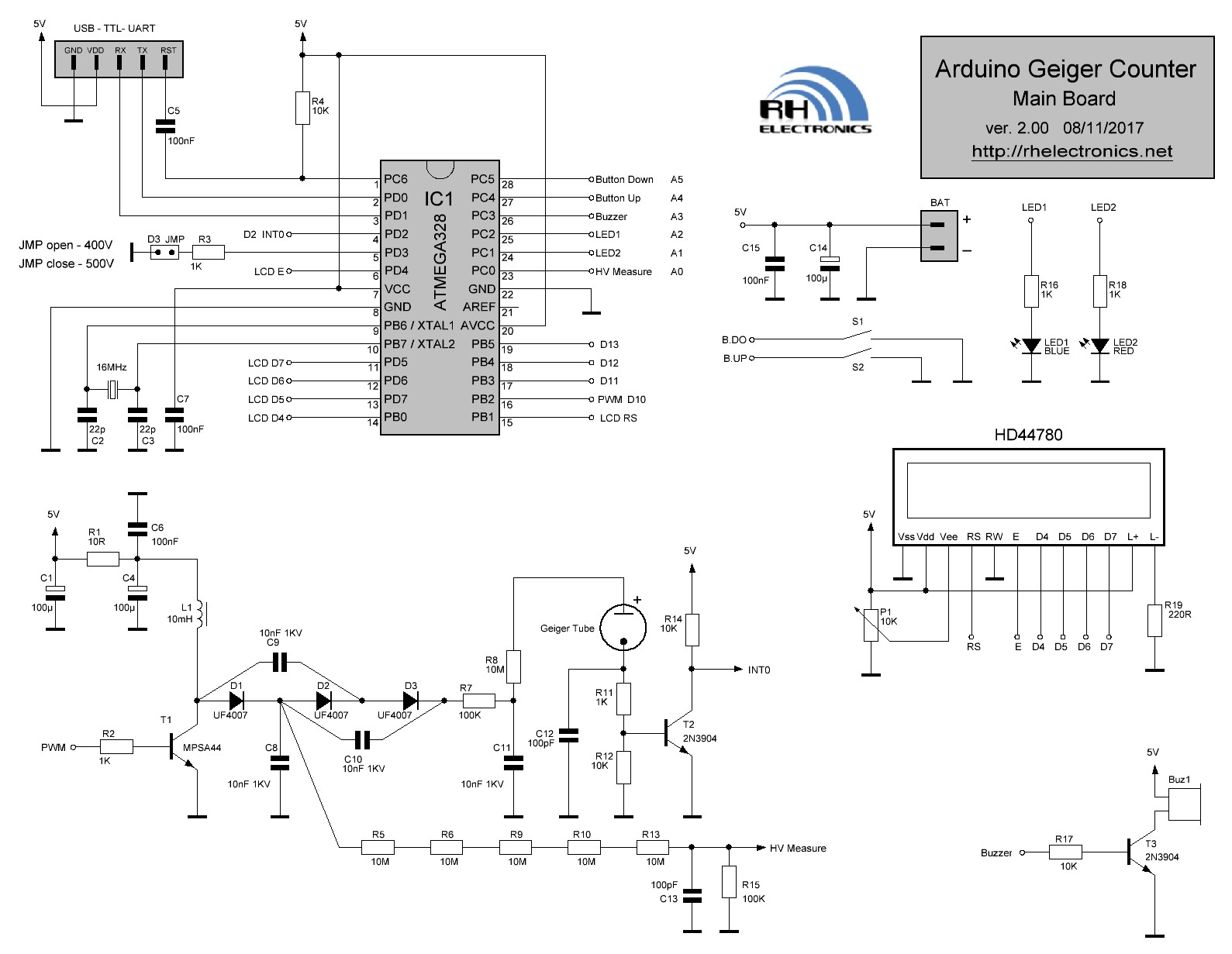

Here you go
Attachments:
Please Log in or Create an account to join the conversation.
4 years 9 months ago - 4 years 9 months ago #4997
by mw0uzo
Replied by mw0uzo on topic Issue with Pyradmon and RH electronics IDE kit
Ok what's interesting here is that if the unit's buzzer is ticking every detection, it means that the CPU has seen the pulse going into INT0/PD2 pin on the IC. As the CPU controls the buzzer. But it is not counting!
If PD2 pin had died due to excess voltage getting in by accident, then there would be no ticking from the buzzer.
That's got me scratching my head. Can you confirm that the buzzer is ticking every detection and that the display reads 0?
If PD2 pin had died due to excess voltage getting in by accident, then there would be no ticking from the buzzer.
That's got me scratching my head. Can you confirm that the buzzer is ticking every detection and that the display reads 0?
Last edit: 4 years 9 months ago by mw0uzo.
The following user(s) said Thank You: docsquee
Please Log in or Create an account to join the conversation.
4 years 9 months ago - 4 years 9 months ago #4999
by docsquee
Replied by docsquee on topic Issue with Pyradmon and RH electronics IDE kit
Both the buzzer and LED1 sound/flash with each detection.
Last edit: 4 years 9 months ago by docsquee. Reason: Identify LED number.
Please Log in or Create an account to join the conversation.
4 years 9 months ago #5000
by docsquee
Replied by docsquee on topic Issue with Pyradmon and RH electronics IDE kit
LCD has ceased working too so perhaps it's the CPU.
Please Log in or Create an account to join the conversation.
4 years 9 months ago #5002
by mw0uzo
Replied by mw0uzo on topic Issue with Pyradmon and RH electronics IDE kit
Could be the CPU is locked up for some reason. You can reprogram it to try to get it working again. Contact RH for the binary image? Or get a new one sent?
Double check 5V going to display - make sure you haven't got a partial supply failure.
Double check 5V going to display - make sure you haven't got a partial supply failure.
The following user(s) said Thank You: docsquee
Please Log in or Create an account to join the conversation.
4 years 8 months ago #5078
by RHStation
Replied by RHStation on topic Issue with Pyradmon and RH electronics IDE kit
The kit is 5V device. Are you sure you are using 5V logic level system to get data from the kit? Maybe you are using 3.3V logic level?
Please Log in or Create an account to join the conversation.
